Identifying Potential Transmission Fluid Leaks: Identifying Potential Car Manual Transmission Leaks
Source: tapatalk-cdn.com
Identifying potential car manual transmission leaks – Manual transmission fluid leaks, while often less prevalent than those in automatic transmissions, can still cause significant problems if left unattended. Proper identification of these leaks is crucial for timely repair and preventing further damage to the vehicle’s drivetrain.Understanding the characteristics of manual transmission fluid, coupled with knowledge of common leak points and warning signs, allows for proactive maintenance and minimizes costly repairs.
Types of Manual Transmission Fluids
Manual transmission fluids (MTF) are formulated to withstand high temperatures and pressures within the transmission. Their properties vary based on the specific application and manufacturer’s specifications. Common characteristics include:
- Color: MTF can range in color from light amber to a reddish-brown, often with a slight metallic tint. The precise shade depends on the specific type of fluid and the additives used. Darker shades might indicate prolonged use or overheating.
- Viscosity: Viscosity, or thickness, is crucial for proper lubrication and gear operation. MTF typically exhibits a medium viscosity, allowing it to flow effectively under various operating conditions. Extreme differences in viscosity can indicate contamination or degradation.
- Odor: A slight, somewhat petroleum-like odor is typical for MTF. A strong, burning, or unusual odor could suggest overheating, contamination, or a potential internal problem within the transmission.
Potential Leak Locations
Leaks in a manual transmission system can occur in several critical areas due to the constant friction and pressure within the components. The vulnerabilities are often related to seals, gaskets, and connections.
- Transmission Housing: The transmission housing is a primary location for leaks. Worn or damaged seals around the input shaft, output shaft, or housing itself can allow fluid to escape. The housing’s constant exposure to pressure and movement makes it susceptible to seal degradation.
- Transfer Case (if applicable): A transfer case, often present in 4×4 systems, also has potential leak points. Gaskets and seals around the input and output shafts, along with the transfer case housing itself, can experience leaks.
- Gearbox: Leaks may originate from the gearbox itself, specifically from around the gears, bearings, and other internal components. The constant movement and pressure can cause seals to deteriorate over time.
- Connecting Lines and Fittings: Leaks can also develop in the lines and fittings that transport the fluid to and from the transmission. Loose connections, worn seals, or damaged fittings can lead to leaks.
Signs of a Transmission Fluid Leak
Recognizing the signs of a transmission fluid leak is essential for prompt action. Early detection prevents further damage.
- Visible Stains: Look for dark reddish-brown stains on the ground or under the vehicle, especially around the transmission area. These stains can be a definitive sign of a leak.
- Puddles: Check for puddles of fluid under the vehicle, particularly near the transmission, transfer case (if applicable), or the engine. The size and frequency of puddles can indicate the severity of the leak.
- Unusual Smells: A burning or unusual petroleum-like odor around the transmission area could suggest overheating or a more serious issue. Pay attention to any changes in odor.
Comparing Transmission Fluid Appearance
| Fluid Type | Color | Viscosity | Odor ||—|—|—|—|| Automatic Transmission Fluid (ATF) | Red/Pink/Beige | Medium to High | Slight petroleum || Manual Transmission Fluid (MTF) | Amber/Reddish-Brown/Light Brown | Medium | Slight petroleum || Power Steering Fluid | Red/Pink | Medium | Petroleum |
Potential Causes of Manual Transmission Fluid Leaks
Various factors can contribute to transmission fluid leaks in manual transmissions.
| Cause | Explanation |
|---|---|
| Worn Seals | Over time, seals can wear down, becoming brittle or losing their elasticity, allowing fluid to seep through. |
| Damaged Gaskets | Gaskets, which provide a seal between components, can crack or tear, leading to leaks. |
| Faulty Components | Damaged or malfunctioning components, such as the input or output shafts, can cause leaks. |
| Loose Fittings | Loose connections in the lines and fittings that transport fluid can result in leaks. |
| Overheating | Excessive heat can degrade seals and gaskets, increasing the risk of leakage. |
Visual Inspection Methods

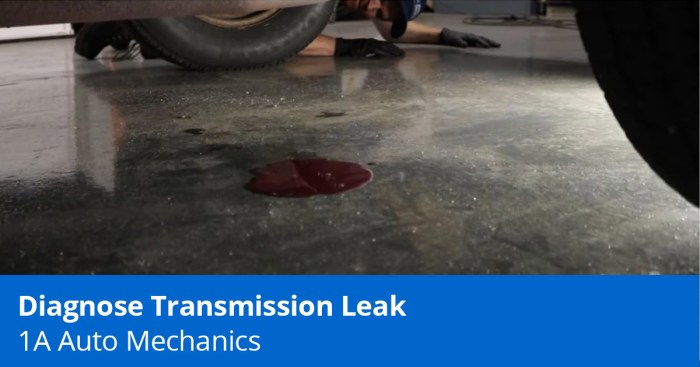

Source: 1aauto.com
Visual inspection is a crucial initial step in identifying potential transmission fluid leaks. Thorough examination of the transmission area can pinpoint the source and severity of the problem, allowing for prompt action and potential prevention of further damage. Careful observation can often reveal subtle signs of leakage, preventing larger issues from developing.Proper visual inspection techniques are essential for accurate leak detection.
This involves a systematic approach to the area surrounding the transmission, ensuring all possible leak points are scrutinized. Varying lighting conditions, such as comparing daylight and shaded areas, can significantly improve leak detection accuracy.
Visual Inspection Procedures
A systematic visual inspection is crucial for identifying transmission fluid leaks. This process involves checking specific areas of the vehicle’s undercarriage, focusing on the transmission pan, torque converter, and associated components. It’s important to note that transmission fluid leaks may exhibit different characteristics under various conditions.
- Thorough Examination of the Transmission Area: Begin by inspecting the transmission pan for any signs of fluid pooling or dripping. Carefully look for any stains or discoloration on the surrounding components. Pay attention to the area beneath the transmission pan, as fluid can sometimes collect in unseen crevices.
- Varying Lighting Conditions: Daylight provides a clear view of the undercarriage, allowing for detailed observation of potential leaks. However, shaded areas can reveal fluid that may be hidden in bright sunlight. The contrast in lighting conditions can highlight areas of potential leakage.
- Distinguishing Transmission Fluid Leaks: Transmission fluid is typically a reddish-brown or amber color. Compare suspected fluid stains with known fluid types, such as engine oil (darker, more viscous), coolant (green or yellowish), or brake fluid (clear). Consider the consistency and appearance of the stains. Fluid pooling from a transmission leak is often more viscous and may exhibit a glossy appearance compared to other types of fluids.
- Step-by-Step Transmission Pan Inspection: Carefully examine the transmission pan for any visible signs of leakage, such as fluid pooling or dripping. Inspect the pan’s perimeter and the area directly beneath it. Pay close attention to any discoloration or staining around the pan’s mounting points. Inspect the drain plug and any other fittings for leakage.
- Torque Converter and Component Inspection: Inspect the torque converter for any signs of fluid leaks. Focus on the areas around the converter’s input and output shafts. Check for stains or dripping around the associated components, including the transmission cooler lines and the transmission housing itself. Examine the cooler lines and fittings for any signs of leakage.
Identifying Transmission Fluid Leaks vs. Other Fluids
Differentiating transmission fluid leaks from other fluids is crucial for accurate diagnosis. Careful observation of the fluid’s color, viscosity, and location can aid in this process.
| Fluid Type | Appearance | Potential Causes | Image Description |
|---|---|---|---|
| Transmission Fluid | Reddish-brown to amber, slightly viscous | Damaged seals, worn gaskets, or a failing transmission | A dark reddish-brown stain on the undercarriage, pooling slightly around the transmission pan. |
| Engine Oil | Darker brown to black, more viscous than transmission fluid | Damaged engine oil pan gasket or seal | A dark, thick stain beneath the engine, spreading outward. |
| Coolant | Green, yellow, or light brown | Leaking radiator, hose, or water pump | A greenish or yellowish stain on the undercarriage, often near the engine or radiator. |
Troubleshooting and Diagnostics
Pinpointing the source of a transmission fluid leak requires a systematic approach. Carefully assessing the potential leak area and employing the right tools and techniques are crucial for accurate diagnosis. Ignoring these steps can lead to incorrect conclusions and potentially further damage to the vehicle.Troubleshooting transmission fluid leaks involves a methodical process, moving from general visual inspection to more specific diagnostic procedures.
This includes utilizing absorbent materials, appropriate lighting, and specialized tools to identify the exact location of the leak. Accurate identification of the leak’s origin is essential for effective repair.
Absorbent Materials for Containment
Proper containment is paramount when dealing with transmission fluid leaks. Using absorbent materials like paper towels or shop rags helps prevent the fluid from spreading and contaminating other parts of the vehicle or the surrounding environment. These materials effectively trap the leaked fluid, making subsequent inspection easier and minimizing environmental impact. Carefully collect the absorbed fluid for proper disposal.
Illumination Techniques for Leak Detection

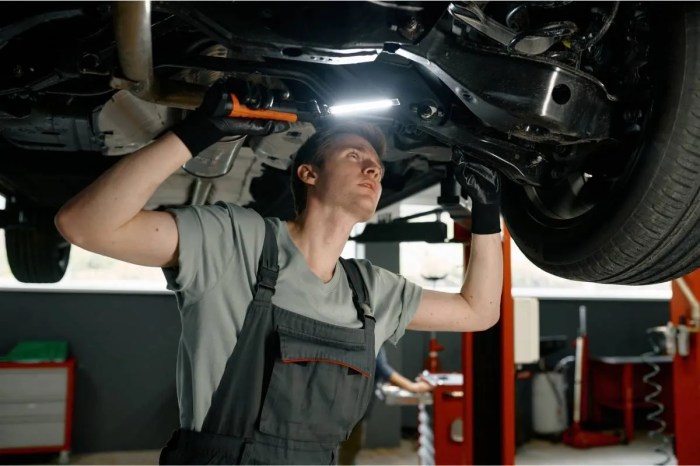

Employing adequate lighting is vital for uncovering potential transmission fluid leaks. A flashlight, headlamp, or even a powerful LED work light can illuminate hidden areas, enabling the identification of subtle drips or stains. Direct light sources help to enhance visibility, allowing for the precise localization of fluid traces.
Identifying the Exact Leak Location
Accurately pinpointing the leak’s precise location is key to effective repair. Mirrors, especially flexible or extendable ones, are valuable tools for inspecting hard-to-reach areas. These tools can reflect light into areas obscured by the vehicle’s components, facilitating the visualization of fluid traces. Specialized probes, such as thin, flexible rods, can be used to detect fluid accumulation in tight spaces or under components.
Carefully maneuvering these tools allows for thorough examination and precise identification of the leak’s origin.
Common Transmission Fluid Leak Symptoms and Potential Causes
| Symptom | Potential Cause |
|---|---|
| Drips or puddles under the vehicle, particularly near the transmission housing. | Damaged transmission pan gasket, worn transmission seal, or a broken transmission line. |
| Fluid stains on the engine or surrounding components. | Leaks from the transmission cooler lines or internal transmission components. |
| Fluid stains around the transmission mounts or support structures. | Leaks from the transmission mount seals or other seal failure points around the transmission mounting. |
| Fluid found on the drive shaft or differential. | Leaks from the transmission output shaft seal or the differential seals. |
Comparison of Leak Detection Methods
Different methods for leak detection provide varying degrees of information. Visual inspection, as previously discussed, is the initial step and often sufficient for identifying the general area of the leak. Auditory detection, listening for dripping sounds, can aid in pinpointing the source, especially in confined areas. Using specialized leak detection dyes can highlight the path of the leak and assist in tracing its source.
Each method has its strengths and limitations, and often, a combination of methods provides the most comprehensive diagnosis.
Repair and Maintenance
Source: cdn-website.com
Addressing transmission fluid leaks requires a systematic approach that considers the leak’s severity and location. Proper repair procedures, along with the use of appropriate tools and techniques, are crucial to effectively resolve the issue and prevent future occurrences. Careful attention to detail and the use of high-quality parts are essential for a lasting repair.Understanding the source of the leak allows for targeted repairs, maximizing efficiency and minimizing the risk of further damage.
Different types of leaks necessitate different repair strategies, highlighting the importance of accurate diagnosis. This section provides a comprehensive guide to repairing and maintaining manual transmissions, emphasizing preventive measures to avoid future leaks.
Repair Procedures for Different Leak Types, Identifying potential car manual transmission leaks
Various repair procedures address leaks depending on their severity and location. Small leaks, often originating from worn seals or gaskets, may be remedied by replacing these components. Larger leaks, potentially stemming from damaged housing or components, require more extensive repairs, potentially involving specialized tools and techniques. Accurate identification of the leak’s source is crucial for selecting the correct repair procedure.
Using Appropriate Tools and Techniques
Proper tools and techniques are vital for safe and effective repairs. Using the wrong tools can damage the transmission or lead to further leaks. Specialized tools, such as seal pullers and gasket scrapers, may be necessary for certain repairs. Always refer to the vehicle’s repair manual for specific tool recommendations and procedures.
Replacing Worn Seals and Gaskets
Replacing worn seals or gaskets is a key preventative measure. Worn seals and gaskets allow fluid to escape, leading to leaks and potential transmission damage. When replacing seals or gaskets, ensure proper installation procedures are followed. Use the correct sealant types and torque values to prevent future leaks and ensure proper sealing.
Cleaning Up Spilled Transmission Fluid
Spill cleanup is crucial for safety and environmental protection. Transmission fluid is hazardous and can cause damage to surfaces. Use absorbent materials to soak up the spilled fluid. Dispose of the contaminated materials properly, following local regulations. Thoroughly clean the affected area to prevent future issues.
Maintaining Manual Transmissions
Regular maintenance is essential for preventing transmission leaks. Inspect the transmission for leaks on a scheduled basis, preferably during routine maintenance checks. Checking fluid levels and ensuring proper lubrication are vital preventive measures. Regular fluid changes, as recommended by the manufacturer, can also help prevent leaks and maintain optimal transmission performance. Using the correct type of transmission fluid is also crucial.
Fluid Level and Change Intervals
Maintaining the correct fluid level is crucial for optimal transmission function. Insufficient fluid can lead to overheating and damage. Excessive fluid can cause leaks or other issues. Following the manufacturer’s recommended fluid change intervals is critical for preventing leaks and maintaining the transmission’s longevity. Using the correct type of transmission fluid is also crucial.
Prevention and Prevention Techniques
Preventing transmission fluid leaks requires a proactive approach encompassing regular maintenance, proper fluid selection, and mindful driving habits. By understanding and implementing these preventative measures, you can significantly reduce the risk of costly repairs and ensure the longevity of your vehicle’s transmission.Proper preventative maintenance significantly reduces the likelihood of transmission fluid leaks and extends the life of your transmission.
This involves a combination of scheduled maintenance, fluid choices tailored to your environment, and driving habits that minimize stress on the transmission system.
Preventative Maintenance Steps
Implementing a schedule for preventative maintenance is crucial for minimizing the risk of transmission fluid leaks. This includes routine checks of the transmission fluid level, and prompt replacement of fluid as recommended by your vehicle’s manufacturer. Regular inspection of the transmission pan and surrounding components for any signs of leaks or damage is essential.
- Regular Fluid Checks: A consistent check of the transmission fluid level, ensuring it remains within the recommended range, helps identify potential problems early. Low fluid levels are a primary cause of transmission failure. Regular checks allow for timely intervention.
- Scheduled Fluid Replacements: Following the manufacturer’s recommended service intervals for transmission fluid replacement is crucial. This helps maintain the fluid’s viscosity and effectiveness, preventing premature wear and tear. Fluid replacements remove contaminants that build up over time, reducing friction and wear.
- Visual Inspection: Regularly inspecting the transmission pan and surrounding areas for any signs of leakage is critical. This involves checking for fluid stains or puddles beneath the vehicle. This visual inspection helps identify leaks early, preventing significant damage.
- Transmission Pan Inspection: Inspect the transmission pan for any damage, cracks, or wear. A damaged pan can lead to fluid leaks. Early detection allows for timely repairs.
Transmission Fluid Types and Suitability
Selecting the correct type of transmission fluid is essential for optimal performance and longevity. Different fluids are formulated for various driving conditions and climates.
- Climate Considerations: Fluid viscosity is crucial for proper transmission function in varying temperatures. For example, in colder climates, a fluid with a higher viscosity is required to maintain fluidity at lower temperatures. Conversely, a thinner fluid is necessary in warmer climates to avoid overheating.
- Driving Conditions: Fluid formulations also cater to different driving conditions. For example, heavy-duty or towing applications often require fluids designed to withstand higher temperatures and pressures. The fluid selected should match the vehicle’s intended use.
Importance of Regular Fluid Checks and Replacements
Regular fluid checks and replacements are essential for maintaining the health and performance of your transmission. These procedures ensure that the transmission operates efficiently and minimizes the risk of component failure.
- Early Detection of Problems: Regular fluid checks can reveal potential problems early, allowing for timely intervention and preventing major damage. A low fluid level can lead to severe transmission issues. Regular checks allow for preventative action before damage occurs.
- Maintaining Fluid Properties: Transmission fluid degrades over time, losing its lubricating and cooling properties. Regular replacements restore these properties, ensuring optimal performance and minimizing wear. This is crucial for maintaining optimal efficiency.
Keeping the Transmission Area Clean
A clean transmission area is crucial for preventing contaminants from entering the transmission and causing leaks or premature wear.
- Minimizing Debris: Keeping the area around the transmission clean helps prevent debris and contaminants from entering the system. Contaminants can lead to leaks or mechanical issues. Regular cleaning is important.
Driving Habits to Avoid Transmission Leaks
Driving habits play a crucial role in preventing transmission fluid leaks. Certain driving practices can reduce stress on the transmission system.
- Avoiding Harsh Acceleration and Braking: Aggressive driving habits, such as rapid acceleration and braking, put extra stress on the transmission components. This can lead to premature wear and tear, increasing the risk of leaks. Gentle acceleration and braking reduce stress.
- Avoiding Overloading: Overloading the vehicle can strain the transmission system, increasing the risk of leaks and damage. Following the vehicle’s weight capacity recommendations prevents unnecessary stress.
- Avoiding Extreme Temperatures: Exposing the vehicle to extreme temperatures, especially prolonged periods of heat or cold, can affect the transmission fluid’s properties. This can lead to leaks. Careful consideration of the driving environment is essential.
